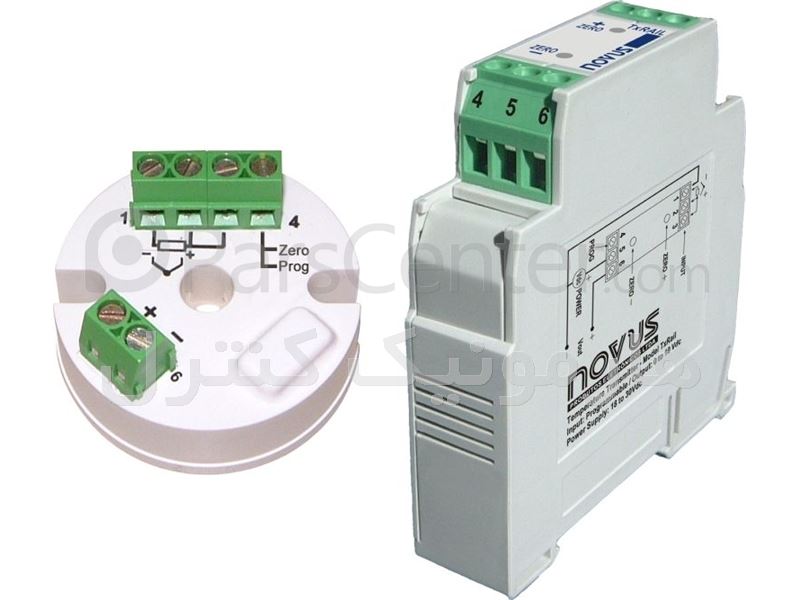

ترانسمیتر دما TXRAIL مارک NOVUS

توضیحات محصول

• ترانسمیتر دمای مولتی NOVUS مدل TXRAIL
• Programmable input: thermocouples type J, K, T, E, N, R, S, and Pt100 RTD with programmable working range

• 2-wire loop powered 4-20 mA output

• Linearized  4 to 20 mA or 20 to 4 mA output for t/c and Pt100

• Cold junction compensation for thermocouples

• Optional 0 to 10 Vdc for TxRail only

• 2 or 3-wire Pt100 with linearization

• Windows configurator (optional)

• Configuration with a PC via TxConfig interface

• Manual zero (offset) adjustment can be done by means of a wire jumper simulating a keyboard for the TxBlock or with 2 front keys in the TxRail

• Digital filter can be set for best 50 or 60 Hz performance

• Power supply: 12 to 30 Vdc

• Accuracy: Pt100 and 0 to 50 mV ±0.2% full scale.  Thermocouples ± 0.3% max. of full scale

• Temperature effect:  0.003% SPAN/°C

• Working temperature:  -40 to +85 °C (-40 to 185 °F)

• Sensor failure protection: programmable burnout upscale or downscale

• Dimensions: TxBlock: 44 mm (Diam.) x 25 mm (H including bornes). TxRail: 72 mm (H) x 78 mm (D) x 19 mm (W)
