سنسور NBB8-18GM50-E2-V1

توضیحات محصول

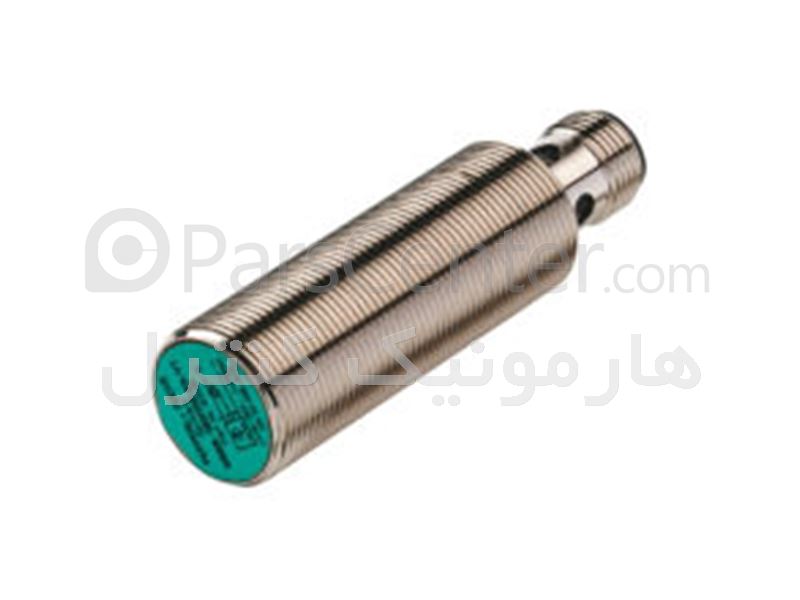

PEPPERL FUCHS NBB8-18GM50-E2-V1

Inductive sensor NBB8-18GM50-E2-V1

• 8 mm flush
• Increased operating distance
• Extended temperature range

• General specifications
  Switching function	Normally open (NO)
  Output type	PNP
  Rated operating distance	8 mm
  Installation	flush
  Output polarity	DC
  Assured operating distance	0 ... 6.48 mm ( -25 ... 70 °C (-13 ... 158 °F) ) 0 ... 6.08 mm ( -40 ... -25 °C (-40 ... -13 °F) )
  Reduction factor rAl	0.45
  Reduction factor rCu	0.4
  Reduction factor r304	0.7
  Nominal ratings
  Operating voltage	10 ... 30 V
  Switching frequency	0 ... 500 Hz
  Hysteresis	typ. 5%
  Reverse polarity protection	reverse polarity protected
  Short-circuit protection	pulsing
  Voltage drop	≤ 3 V
  Operating current	0 ... 200 mA
  Off-state current	0 ... 0.5 mA typ. 0.1 µA at 25 °C
  No-load supply current	≤ 15 mA
  Switching state indicator	Multihole-LED, yellow
  Functional safety related parameters
  MTTFd	1190 a
  Mission Time (TM)	20 a
  Diagnostic Coverage (DC)	0 %
  Approvals and certificates
  EAC conformity	TR CU 020/2011
  UL approval	cULus Listed, General Purpose
  CSA approval	cCSAus Listed, General Purpose
  CCC approval	CCC approval / marking not required for products rated ≤36 V
  Ambient conditions
  Ambient temperature	-40 ... 70 °C (-40 ... 158 °F)
  Storage temperature	-40 ... 85 °C (-40 ... 185 °F)
  Mechanical specifications
  Connection type	Connector M12 x 1 , 4-pin
  Housing material	brass, nickel-plated
  Sensing face	PBT
  Housing diameter	18 mm
  Degree of protection	IP67
