سنسورهای مکعبی مدل NJ20-U1-A2 مارک PEPPERL FUHS جهت تشخیص فلزات در فاصله 20 میلیمتری به کار میرود. دارای خروجی PNP و کنتاکت باز و بسته میباشد.
084513_eng | 129٫63 کیلوبایت | دانلود |

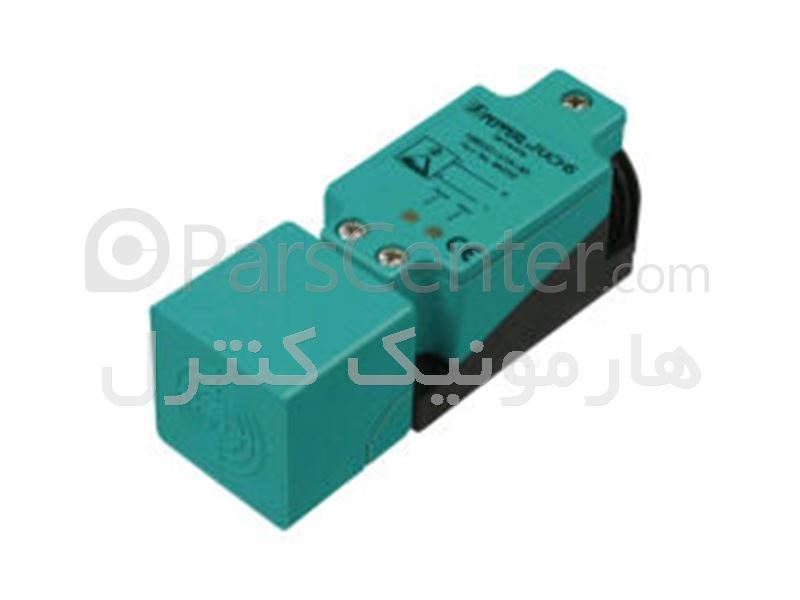

PEPPERL FUCHS NJ20-U1-A2
Inductive sensor NJ20+U1+A2
General specifications | |
---|---|
Switching function | complementary |
Output type | PNP |
Rated operating distance | 20 mm |
Installation | flush |
Output polarity | DC |
Assured operating distance | 0 ... 16.2 mm |
Reduction factor rAl | 0.35 |
Reduction factor rCu | 0.35 |
Reduction factor r304 | 0.8 |
Nominal ratings | |
Operating voltage | 10 ... 60 V |
Switching frequency | 0 ... 150 Hz |
Hysteresis | 1 ... 10 typ. 5 % |
Reverse polarity protection | reverse polarity protected |
Short-circuit protection | pulsing |
Voltage drop | ≤ 2.8 V |
Operating current | 0 ... 200 mA |
No-load supply current | ≤ 10 mA |
Operating voltage indicator | LED, green |
Switching state indicator | LED, yellow |
Approvals and certificates | |
UL approval | cULus Listed, General Purpose |
CSA approval | cCSAus Listed, General Purpose |
CCC approval | Certified by China Compulsory Certification (CCC) |
Ambient conditions | |
Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
Mechanical specifications | |
Connection type | screw terminals |
Core cross-section | up to 2.5 mm2 |
Housing material | PBT |
Sensing face | PBT |
Degree of protection | IP68 |
