ترانسمیتر دمای ریلی ایزوله PT100 مارک PHOENIX CONTACT با قابلیت نصب روی ریل توان اندازه گیری دما و تبدیل به 2 سیگنال 20...4 میلی آمپر و 20...0 میلی آمپر را دارد.
این ترانسمیتر تا سطح 750 ولت ایزوله میباشد.
مشخصات
- سنسور ورودی :
- RTD PT100
- ولتاژ تغذیه :
- 30...20 VDC
- خروجی :
- آنالوگ 20-4 و 20-0 میلی آمپر
- نوع اتصال :
- 2WIRE,3 WIRE,4 WIRE
قیمت محصول
- قیت همکار / عمده فروشی :
- استعلام قیمت
توضیحات محصول

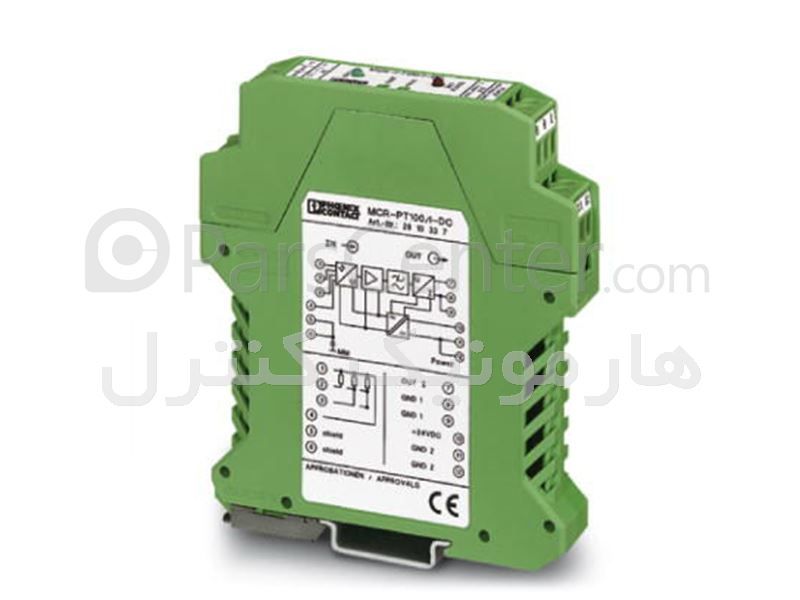

Resistance thermometer measuring transducer - MCR-PT100-I-DC - 2810337
MCR temperature transducer, for Pt 100 2, 3 or 4-wire system, input: 0...100°C, 0...150°C, 0...200°C, 0...300°C -50...+50°C, -50...100°C, -50...150°C, -50...250°C, output signal 0(4)...20 mA, auxiliary power electrically isolated
Dimensions
| Width | 17.5 mm |
|---|
| Height | 99 mm |
|---|
| Depth | 114.5 mm |
|---|
Ambient conditions| Ambient temperature (operation) | -20 °C ... 65 °C |
|---|
| Degree of protection | IP20 |
|---|
Input data| Configurable/programmable | Yes |
|---|
| Sensor types (RTD) that can be used | Pt 100 (IEC 60751/EN 60751) |
|---|
| Sensor input current | approx. 1 mA |
|---|
| Temperature measuring range | 0 °C ... 300 °C (0 ... 100/150/200/300) |
|---|
| -50 °C ... 250 °C (-50 ... 50/100/150/250) |
|---|
| Connection method | 2, 3, 4-wire |
|---|
| Pluggable screw connection |
|---|
Output data| Output name | Current output |
|---|
| Current output signal | 4 mA ... 20 mA |
|---|
| 0 mA ... 20 mA |
|---|
| Max. output current | 30 mA |
|---|
| Output current with wire break | > 22 mA |
|---|
| Load/output load current output | ≤ 500 Ω |
|---|
Power supply| Supply voltage range | 20 V DC ... 30 V DC |
|---|
| Max. current consumption | 60 mA |
|---|
Connection data| Connection method | Pluggable screw connection |
|---|
| Conductor cross section solid min. | 0.2 mm² |
|---|
| Conductor cross section solid max. | 2.5 mm² |
|---|
| Conductor cross section stranded min. | 0.2 mm² |
|---|
| Conductor cross section stranded max. | 2.5 mm² |
|---|
| Conductor cross section AWG/kcmil min. | 24 |
|---|
| Conductor cross section AWG/kcmil max | 14 |
|---|
| Stripping length | 8 mm |
|---|
| Screw thread | M3 |
|---|
General| Maximum transmission error | ≤ 0.4 % (of final value) |
|---|
| Maximum temperature coefficient | ≤ 0.02 %/K |
|---|
| Limit frequency (3 dB) | 30 Hz |
|---|
| Alignment zero | ± 5 % |
|---|
| Alignment span | ± 5 % |
|---|
| Step response (10-90%) | 11 ms |
|---|
| Test voltage power supply/signal | 750 V AC (50 Hz, 1 min.) |
|---|
| Color | green |
|---|
| Housing material | Polyamide PA non-reinforced |
|---|
| Mounting position | Any |
|---|
| Conformance | CE-compliant |
|---|
| UL, USA / Canada | UL 508 Recognized |
|---|
ClassificationseCl@ss | eCl@ss 4.0 | 27200206 |
|---|
| eCl@ss 4.1 | 27200206 |
|---|
| eCl@ss 5.0 | 27200206 |
|---|
| eCl@ss 5.1 | 27200206 |
|---|
| eCl@ss 6.0 | 27200206 |
|---|
| eCl@ss 7.0 | 27200206 |
|---|
