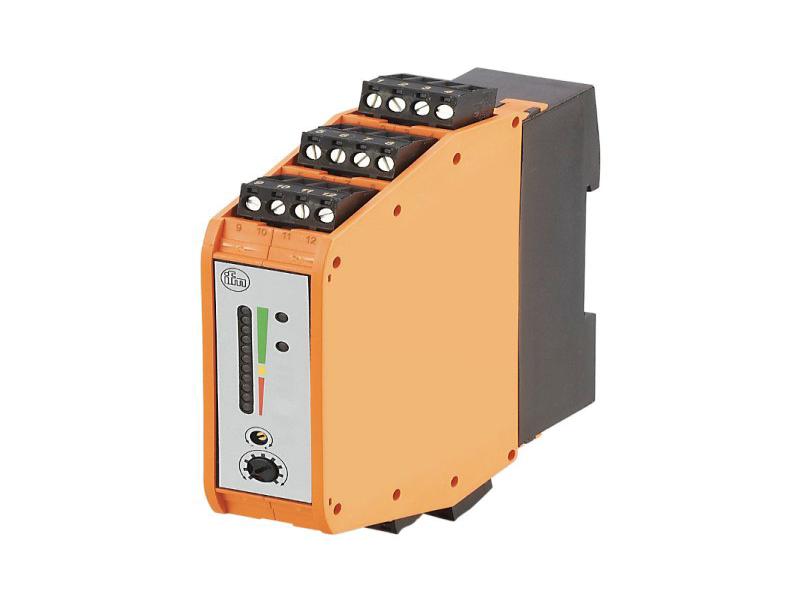

VS3000/24VDC

• For the connection of flow sensors
• Integrated flow, temperature and wire monitoring
• Adjustable switching outputs for monitoring flow and temperature
• Clearly visible multi-colour LED bargraph display
• Signal output via potential-free relay contacts
• ApplicationApplicationFlow monitoring; Temperature monitoring; Wire monitoringElectrical dataOperating voltage tolerance [%]-20...10Operating voltage [V]24 DCCurrent consumption [mA]90Protection classIIIReverse polarity protectionnoPower-on delay time [s]10...80; (adjustable (fixed-value resistors terminals 22-23))Number of channels1OutputsPerformance in case of a faultIn case of undervoltage all relays are de-energised; the LED "LOW VOLTAGE/WIRE BREAK-RELAY" lightsElectrical designrelayContact rating4 A (250 V AC / 30 V DC)Switching function flow monitoringrelay energised when flow is present and during the power-on delay timeSwitching function temperature monitoringrelay energised when temperature is exceededSwitching function wire break monitoringrelay de-energised in case of wire break or short circuitShort-circuit proofnoOverload protectionnoResponse timesResponse time [s]< 3Software / programmingAdjustment of the switch pointpotentiometerSelection liquids / gaseswire bridge; on delivery: monitoring of liquids.; for monitoring of gases: link terminals 23 / 24.Switch point settingpotentiometerTemperature range [°C]0...80Repeatability of the set switch point [K]4Operating conditionsAmbient temperature [°C]-20...60Note on ambient temperature

  in case of sufficient free space for convection cooling

  ProtectionIP 20Tests / approvalsMTTF [years]263Mechanical dataWeight [g]237.5Housinghousing for DIN rail mountingDimensions [mm]100 x 25 x 103.5MaterialsPBTDisplays / operating elementsDisplay

  function	11 x LED
  switching status	LED, red
  switching status	LED, red

  Electrical connectionRequired protectionminiature fuse to IEC60127-2 sheet 1; ≤ 5 A; fast actingRemarksRemarks

  Recommendation Check the safe functioning of the unit after a short circuit.

  Pack quantity1 pcs.Electrical connectionConnectionCOMBICON connector:ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — SR0150-01 — 23.07.2010 —
