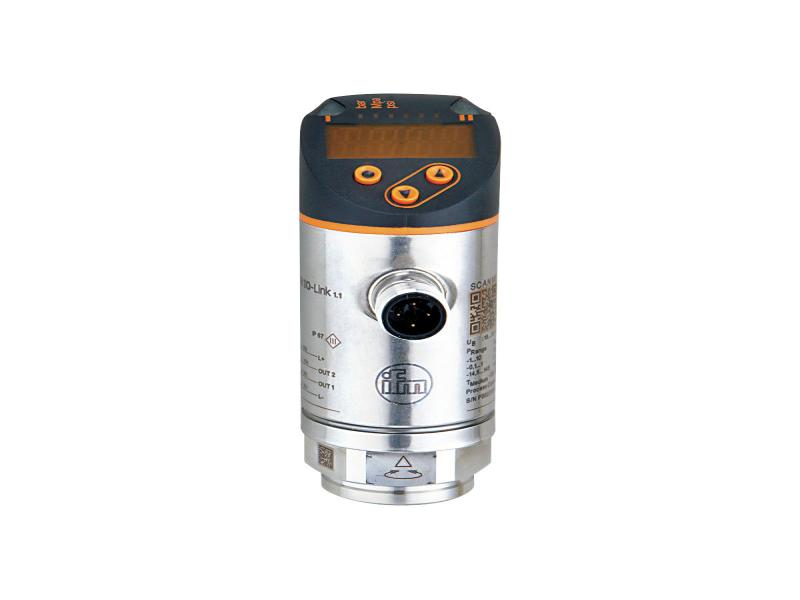

سنسور فشار IFM PN2094
Pressure sensor with display PN2094 PN-010-RER14-MFRKG/US/ /V
مشخصات
- شرکت سازنده :
- IFM
- مدل :
- PN2094
- کشور سازنده :
- آلمان
قیمت محصول
- حداقل مقدار سفارش :
- 1 عدد
فایلهای پیوست
| PN2094-02_EN-GB | 358٫29 کیلوبایت | دانلود |
توضیحات محصول
| Electronic pressure sensor; Operating voltage 18...30 DC; (according to EN 50178 SELV/PELV) V; 3-wire; PNP/NPN; M12 Connector; Gold-plated contacts; for industrial applications | |
|---|---|
| Product designation | Electronic pressure sensor |
| Application | for industrial applications |
| Process connection | threaded connection G 1/4 internal thread (DIN EN ISO 1179-2) |
| Operating voltage DC | 18...30 V |
| Voltage type | DC |
| Electrical design | PNP/NPN |
| Total number of outputs | 2 |
| Output function | normally open / normally closed; (parameterisable); analogue |
| Output signal | switching signal; analogue signal; IO-Link; (configurable) |
| Analogue current output | 4...20; (scalable 1:5) mA |
| Analogue voltage output | 0...10; (scalable 1:5) V |
| Measuring range | -0.1...1 MPa |
| Connection | M12 Connector |
| Materials | stainless steel (1.4404 / 316L); PBT+PC-GF30; PBT-GF20; PC |
| Materials (wetted parts) | stainless steel (1.4404 / 316L); Al2O3 (ceramics); FKM |
| Display | Display unit: 3 x LED green (bar, psi, MPa); switching status: 2 x LED yellow; measured values: alphanumeric display red/green 4-digit |
| Ambient temperature | -25...80 °C |
| Medium temperature | -25...80 °C |
| Communication interface | IO-Link |
| Brand | ifm electronic gmbh or equivalent |
| Type | PN2094 |
