سنسور NJ1,5-18GM-N-D-V1

توضیحات محصول

پروکسیمیتی NJ1,5-18GM-N-D-V1 پپرل فوکس

سنسور NJ1,5-18GM-N-D-V1

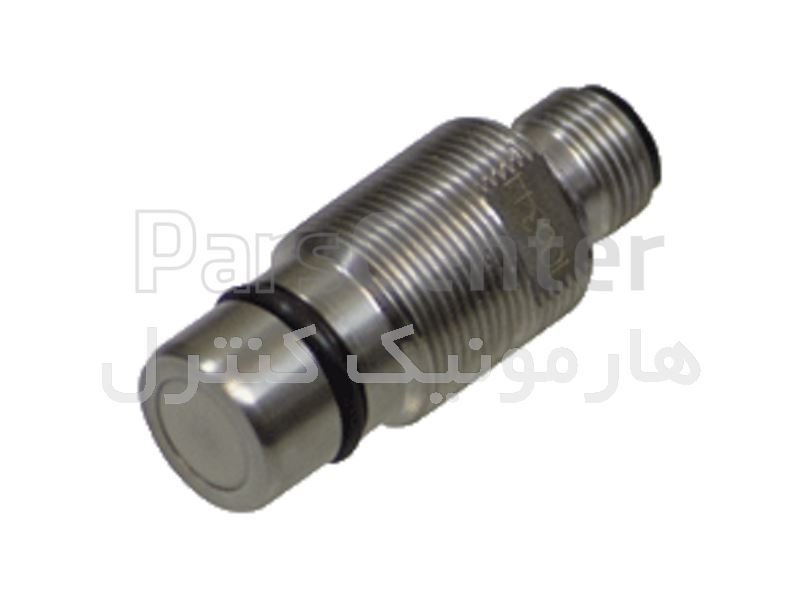

Inductive sensor NJ1,5-18GM-N-D-V1

1.5 mm flush
Compression proof up to 350 bar, dynamic on active surface
Usable up to SIL 2 acc. to IEC 61508

Switching function
Normally closed (NC)
Output type
NAMUR
Rated operating distance
1.5 mm
Installation
flush
Assured operating distance
0 ... 1.22 mm
Reduction factor rAl
0
Reduction factor rCu
0
Reduction factor r304
0.55
Output type
2-wire
Nominal ratings
Nominal voltage
8.2 V (Ri approx. 1 kΩ)
Switching frequency
0 ... 400 Hz
Hysteresis
typ. %
Current consumption


Measuring plate not detected
min. 3 mA

Measuring plate detected
≤ 1 mA
Limit data
Operating pressure
350 bar (5076.4 psi)
Functional safety related parameters
Safety Integrity Level (SIL)
SIL 2
MTTFd
10887 a
Mission Time (TM)
20 a
Diagnostic Coverage (DC)
0 %
Compliance with standards and directives
Standard conformity


NAMUR
EN 60947-5-6:2000
IEC 60947-5-6:1999

Standards
EN 60947-5-2:2007
EN 60947-5-2/A1:2012
IEC 60947-5-2:2007
IEC 60947-5-2 AMD 1:2012
Approvals and certificates
IECEx approval


Equipment protection level Gb
IECEx PTB 11.0037X

Equipment protection level Da
IECEx PTB 11.0037X

Equipment protection level Mb
IECEx PTB 11.0037X
ATEX approval


Equipment protection level Gb
PTB 00 ATEX 2048 X

Equipment protection level Da
PTB 00 ATEX 2048 X
FM approval


Control drawing
116-0165
UL approval
cULus Listed, General Purpose
CCC approval


Hazardous Location
2020322315002255
NEPSI approval


NEPSI certificate
GYJ16.1393X
ANZEx
18.3018X
KCC approval


Hazardous Location
19-AV4BO-0227
Marine approval
DNVGL TAA0000106
Ambient conditions
Ambient temperature
-25 ... 85 °C (-13 ... 185 °F)
Mechanical specifications
Connection type
Connector plug
Housing material
Stainless steel 1.4305 / AISI 303
Sensing face
Ceramic
Degree of protection
IP66 / IP67
Connector


Threading
M12 x 1

Number of pins
4
Mass
41.81 g
General information
Use in the hazardous area
see instruction manuals

فروش NJ1,5-18GM-N-D-V1
