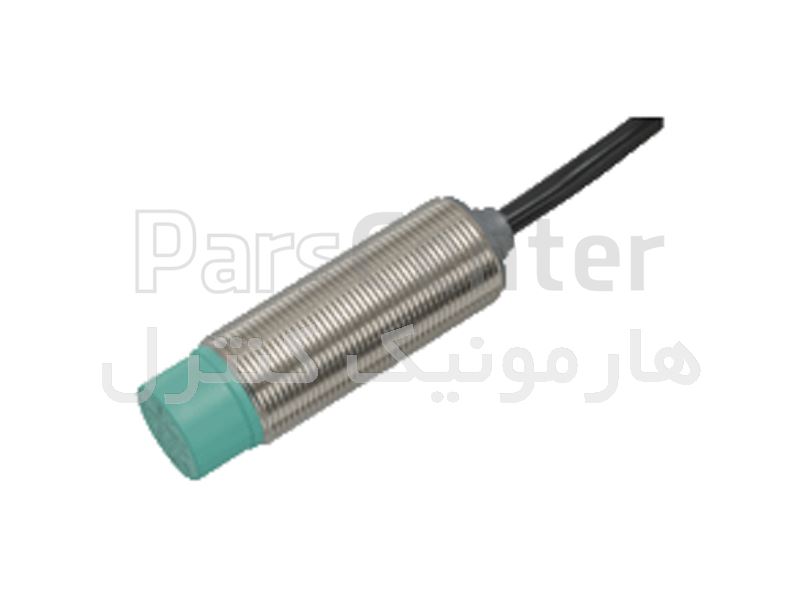

سنسور القایی مدل 3RG4023-0KB00-PF شرکت پپرل فوکس آلمان از سری سنسورهای دو سیم مولتی ولت AC و DC میباشد که دارای کنتاکت NO میباشد.این سنسور قبلا توسط شرکت زیمنس آلمان تولید شده بود که بعد از خریداری شرکت زیمنس توسط پپرل فوکس آلمان این سنسور همچنان با همان کد قدیم تولید میگردد.
3RG4023-0KB00-PF | 63٫28 کیلوبایت | دانلود |
سنسور القایی 2 سیم
3RG4023-0KB00-PF
cylindrical M18
Mounting : non-embeddable
Rated operating distance : sn 8,0 mm
Effective operating distance : sr 7,2 ... 8,8 mm
Rated operational voltage : Ue 230 V AC / DC
Operating voltage range : UB 20 ... 320 V DC / 20 ... 265 V AC
Output : 2 wire AC / DC / 2 Leiter AC / DC
Rated operational current : le 200 mA
Frequency of operating cycles : f DC: 900 / AC: 25 Hz
Time delay before availability : tv 100 ms
Ambient temperature range : Ta -25...+85 Cel
Storage temperature range : Ts -40...+85 Cel
Degree of protection : IP 67
Housing material : brass
Cable type : 2 x 0,25 qmm
Cable length : 2 m
Sensing face : front side
Weight : Cable / Kabel: 0,10 kg
3RG4023-0KB00-PF
schwarz/black
schwarz/black
N/L-
(L1/L+)
