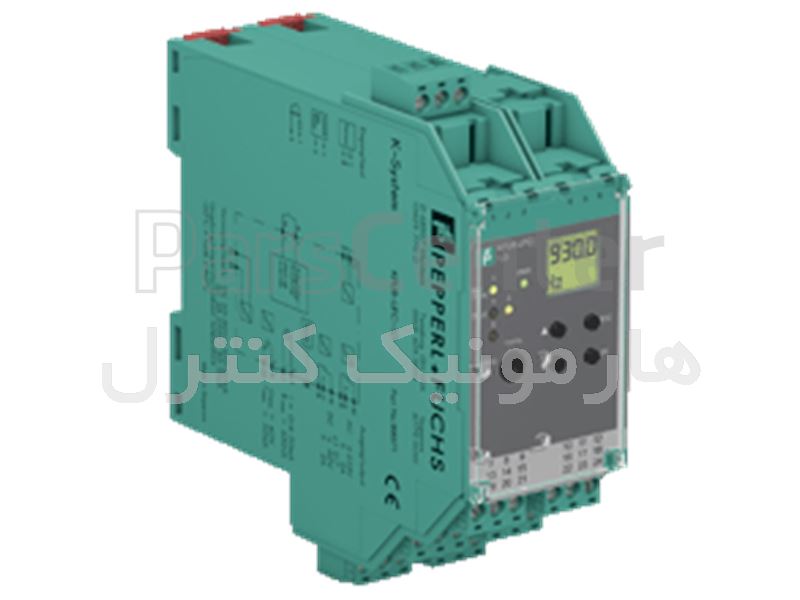

رله دور KFU8-UFC-1.D

توضیحات محصول

Frequency Converter with Trip Values KFU8-UFC-1.D

• 1-channel signal conditioner
• Universal usage at different power supplies
• Input for 2- or 3-wire sensors, NAMUR sensors or dry contacts
• Input frequency 1 mHz ... 12 kHz
• Current output 0/4 mA ... 20 mA
• Relay and transistor output
• Start-up override
• Line fault detection (LFD)
• Up to SIL 2 acc. to IEC 61508/IEC 61511

Function
This signal conditioner provides the isolation for nonintrinsically safe applications.
The device is a universal frequency converter that changes a
digital input signal into a proportional free adjustable
0/4 mA ... 20 mA analog output signal and functions as a
switch amplifier and a trip alarm.
The functions of the switch outputs (2 relay outputs and
1 potential free transistor output) are easily adjustable [trip
value display (min/max alarm), serially switched output, pulse
divider output, error signal output].
The device is easily configured by the use of keypad or with
the PACTware configuration software.
A fault is signalized by LEDs acc. to NAMUR NE44.
For additional information, refer to the manual and
www.pepperl-fuchs.com.
